Sorting out resistors

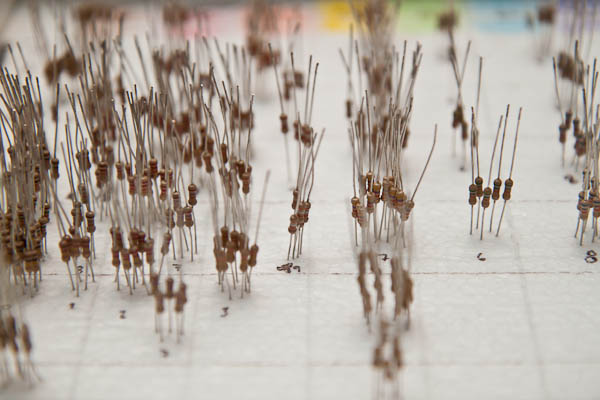

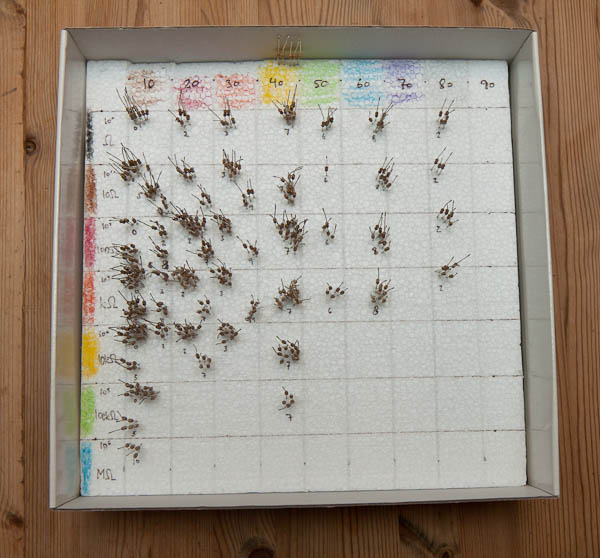

Here's a simple trick for storing resistors in sorted order. Get a plate of polystyrene/styrofoam and draw a 10x8 grid on it. The rows signify the exponent (101, 102, ...) and the columns signify the tens (10, 20, 30). Now, if you want to store a resistor at 68 kΩ, find the 103 row, the 60 column and place it in a group marked with 8 within that square.

It is also a good idea to color the fields, so you can directly place a resistor in the grid without knowing the color codes (rows are the third color, columns are the first color, and the placement inside the square is the second color).

overview

Improvements

I didn't take into account which resistors I actually had, so you can see a lot of blanks. I like the idea that I can see the 70 column (and hence its color) even though it is not used, but it could have been a smaller column. Ideally, the column size should be on a logarithmic scale: start out big and decrease in size.
